Tower Winch Hoist

Tower Winch Hoist Cranes

Accueil / détail de voitures de

Cranes

Ajouté: Jan 15, 2024

Prix: Contact pour le prix

But Sell

Marque et modèle du: Others Primax

Carrosserie: 2024

Kilométrage: 0 Hours

Type de carburant: Electricité

Localisation: Lalitpur

téléphone: 9851083649

brochure:

Imprimer Se

Description du

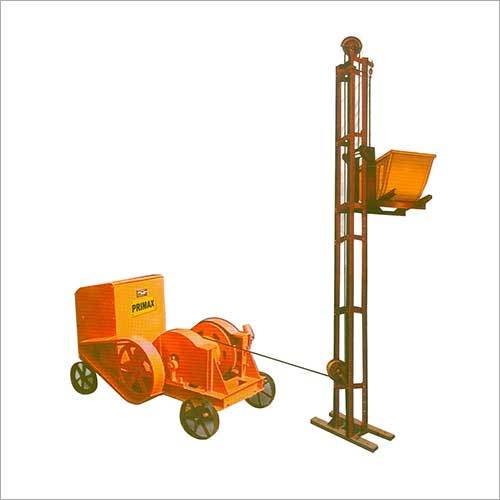

We are a widely admired manufacturer, supplier and exporter of Tower Hoist (Winch), which is made out of finest components and ultra-modern technology. The offered tower hoist is known for easy mobility, simple erection, outstanding reliability, safe and profitable attributes. Customers can avail this Tower Hoist (Winch) from us in varied specifications at affordable prices.

Features

Winch Drum: Single Drum made of superior grade casting with friction drive clutch. Winch can hold 300 ft. of wire rope.
Capacity: 1 M. Ton (1000 Kgs) Gross Weight.
Wire Rope: 12MM dia
Concrete Carrying Skip: (Silio), 10 Cft. Capacity
Trolley Speed: 20-25 Mtr./Minute
Power Unit: 15 H.P. Electric Motor 440/3/50 or 14 Aircooled Diesel Engine.
Drive: Through Chain and Fiber Rollers from the prime mover.
Bearings: Heavy duty taper roller bearings and G.M. Bushes.
Brakes: Industrial Brake Lining adjustable type.
Masts: Jig built electrically welded and fully aligned.
Tower Angle Section: 65 X 65 X 6mm (All four angles). 3.0 mts length
Chassis: Robustly constructed of heavy steel section to withstand continuous hard and rough use and mounted on 4 nos. M.S. Wheels.
Housing & Guard: Full guards on all the gears for safely of operator and moving parts.
Type: Mobile or Stationery.

Special Features: For quick erection facility mast sections are made of standard lengths for instantaneous self alignment. Automatic safety locking device with double cam action can be repeatedly applied without damaging the equipment. If required the tilting type bucket can be removed and platform can be used for lifting of other construction materials.
